TS30-75
TS30-75
Price per Inch: 0.71

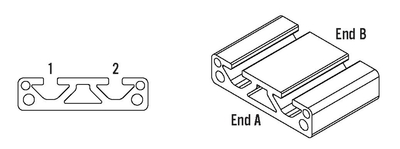

3"x.75" 2-slot clear anodized
Model #: 650019
3"x.75" 2-slot clear anodized
Stock Length: 145″
Weight: 1.547 lbs/ft (2.303 kg/m)

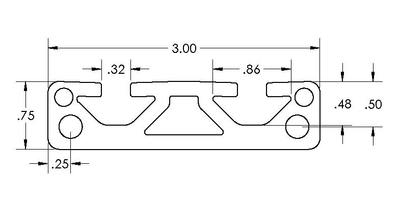

Estimated Area: 1.321 in2 (8.525 cm2)
Moment of Inertia: Ix=.076 in4 (3.175 cm4); Iy=1.069 in4 (44.515 cm4)
Machining Services
Cut to Length: 660003
Access Hole: 660028
Anchor Fastener: 660020
Tap 5/16 � 18: 660024
Tap M8: 660027
Tap 3/8 � 16: 660182

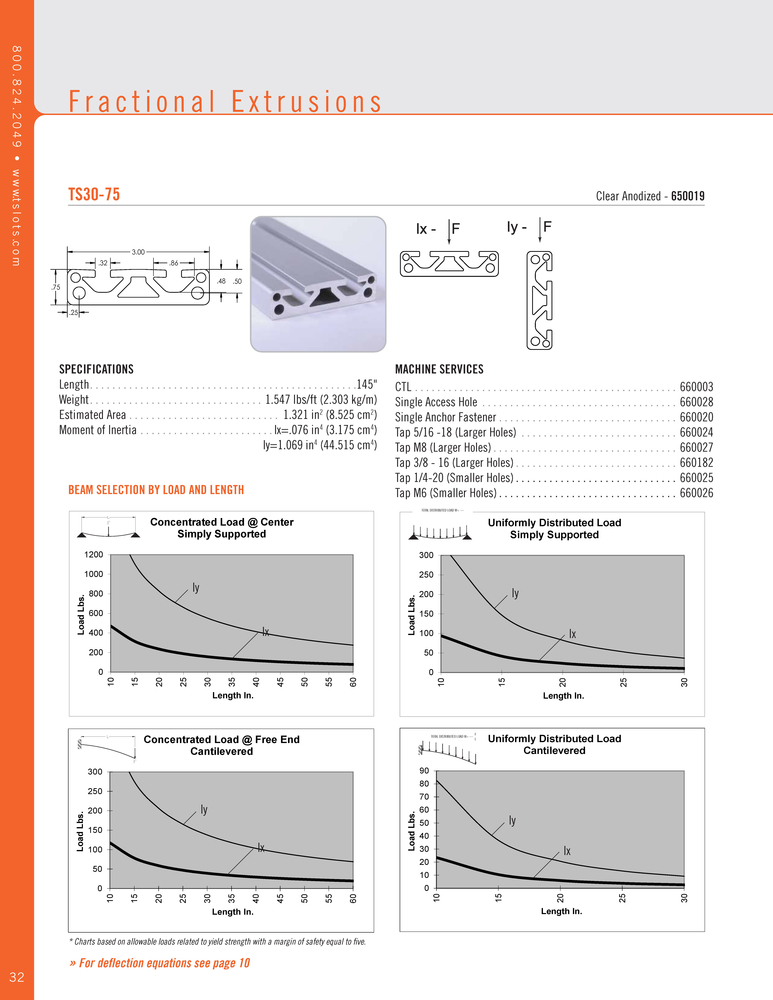

> 15s Extrusions PDF (2.41MB)
CAD Files:
* TSlots drawing files are available on TraceParts CAD Engine *
> Browse for files or search by part number
or Contact Us to request that files be emailed to you. Please specify desired file format.
