TS15-75
TS15-75
Price per Inch: 0.37

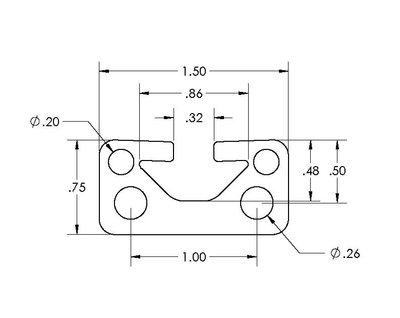

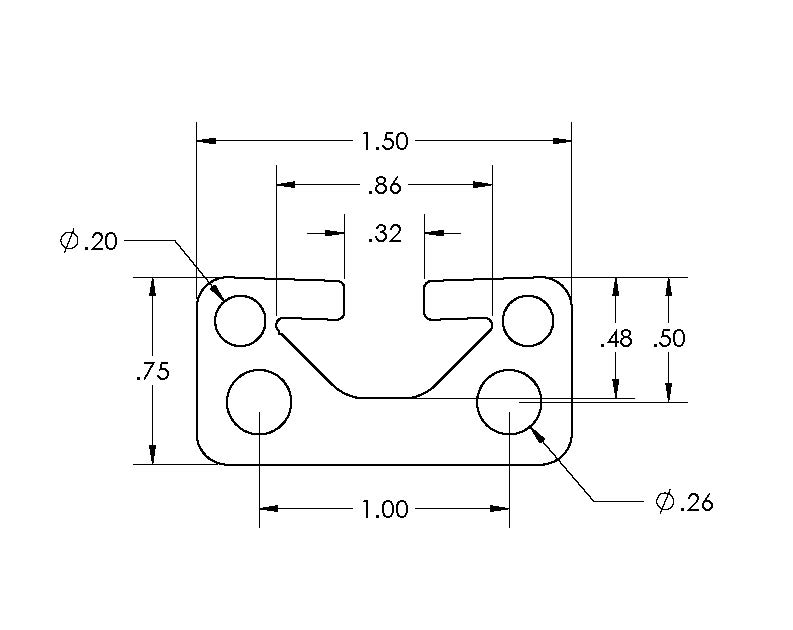

1.5"x.75" 1-slot clear anodized
Model #: 650007
1.5"x.75" 1-slot clear anodized
The 1.5″ x .75″ extrusion can be used as a door rail or a support for clamps, sensors, valves, etc.
SPECIFICATIONS
Stock Length: 145″
Weight: 0.833 lbs/ft (1.238 kg/m)
Estimated Area: 0.694 in2 (4.476 cm2)
Moment of Inertia: Ix=.037 in4 (1.522 cm4); Iy=.147 in4 (6.114 cm4)
Machining Services
Cut to Length: 660003

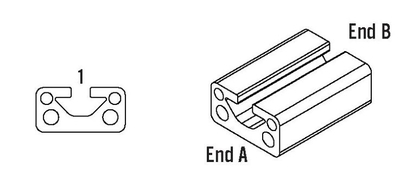

Access Hole: 660028
Anchor Fastener: 660020
Tap 5/16-18: 660024
Tap M8: 660027
Tap 3/8-16: 660182

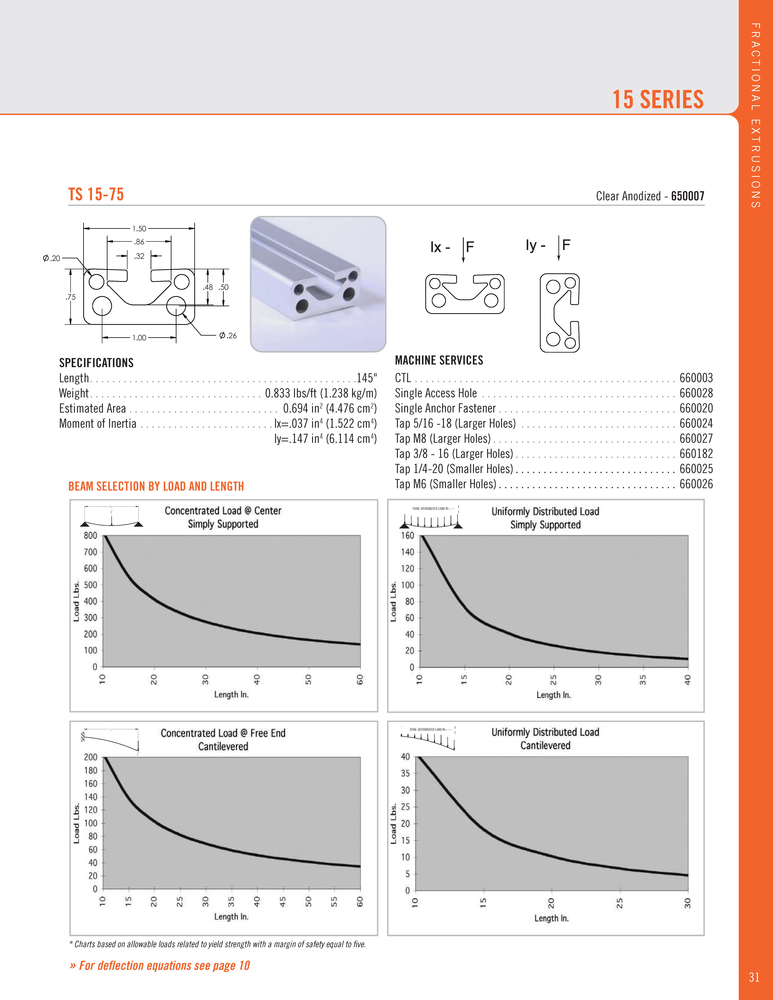

> 15s Extrusions PDF (2.41MB)
CAD Files:
* TSlots drawing files are available on TraceParts CAD Engine *
> Browse for files or search by part number
or Contact Us to request that files be emailed to you. Please specify desired file format.
