TS15-15
TS15-15
Price per Inch: 0.69
1.5"x1.5" heavy 4-slot clear anodized
Model #: 650005
1.5"x1.5" heavy clear anodized
The 1.5″ x 1.5″ shape has a thicker wall that will accommodate heavier applications than the 1.5″ x 1.5″L. Applications include machine frames, workstations, shop carts, tables and machine retrofits.
SPECIFICATIONS
Stock Length: 240″
Weight: 1.406 lbs/ft (2.092 kg/m)
Estimated Area: 1.198 in2 (7.729 cm2)
Moment of Inertia: Ix=.266 in4 (11.072 cm4); Iy=.266 in4 (11.072 cm4)
Machining Services
Cut to Length: 660003
Access Hole: 660028
Anchor Fastener: 660020
Tap 5/16-18: 660034
Tap M8: 660033
Tap 3/8-16: 660009

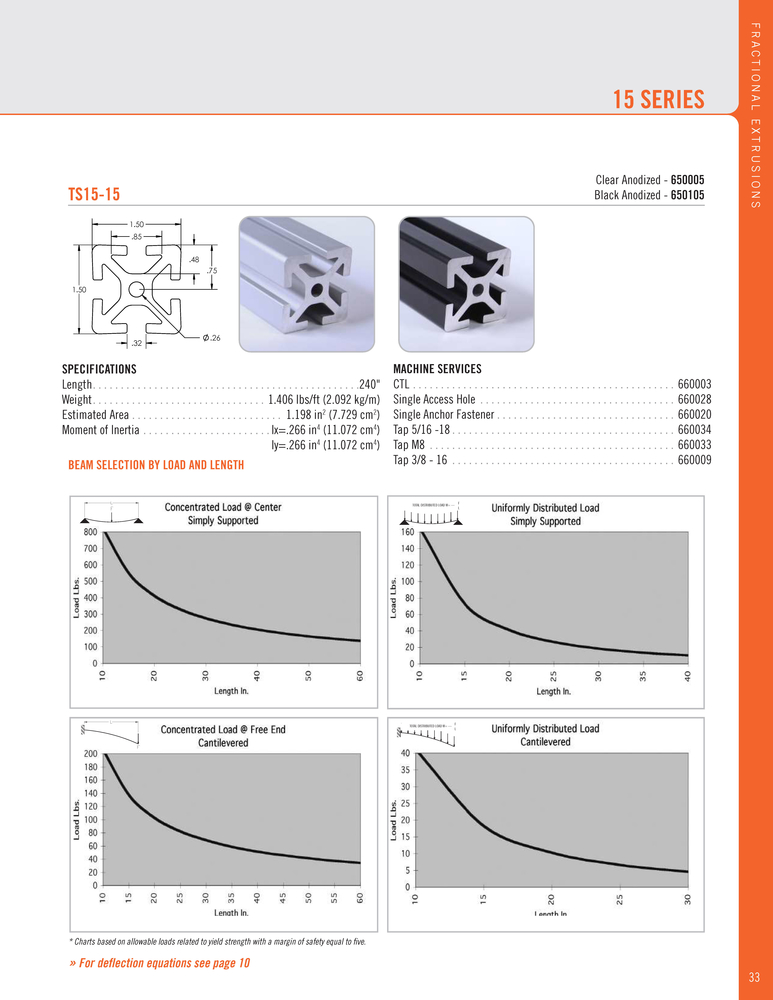

> 15s Extrusions PDF (2.41MB)
CAD Files:
* TSlots drawing files are available on TraceParts CAD Engine *
> Browse for files or search by part number
or Contact Us to request that files be emailed to you. Please specify desired file format.
