TS30-30L
TS30-30L
Price per Inch: 1.79
3"x3" lite clear anodized
Model #: 650013
3"x3" lite clear anodized

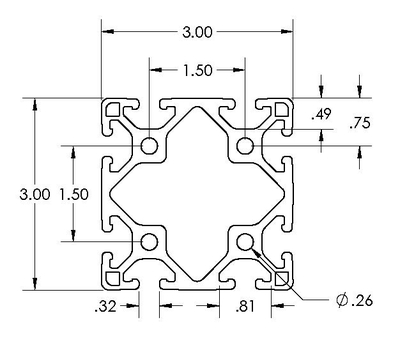

TS30-30L: 3″ X 3″ Lite T-Slotted Extrusion
SPECIFICATIONS
Stock Length: 240″
Weight: 3.296 lbs/ft (4.905 kg/m)
Estimated Area: 2.728 in2 (17.598 cm2)
Moment of Inertia: Ix=2.639 in4 (109.863 cm4); Iy=2.639 in4 (109.863 cm4)
Machining Services
Cut to Length: 660013
Access Hole: 660028
Anchor Fastener: 660020
Tap 5/16-18: 660031
Tap M8: 660032

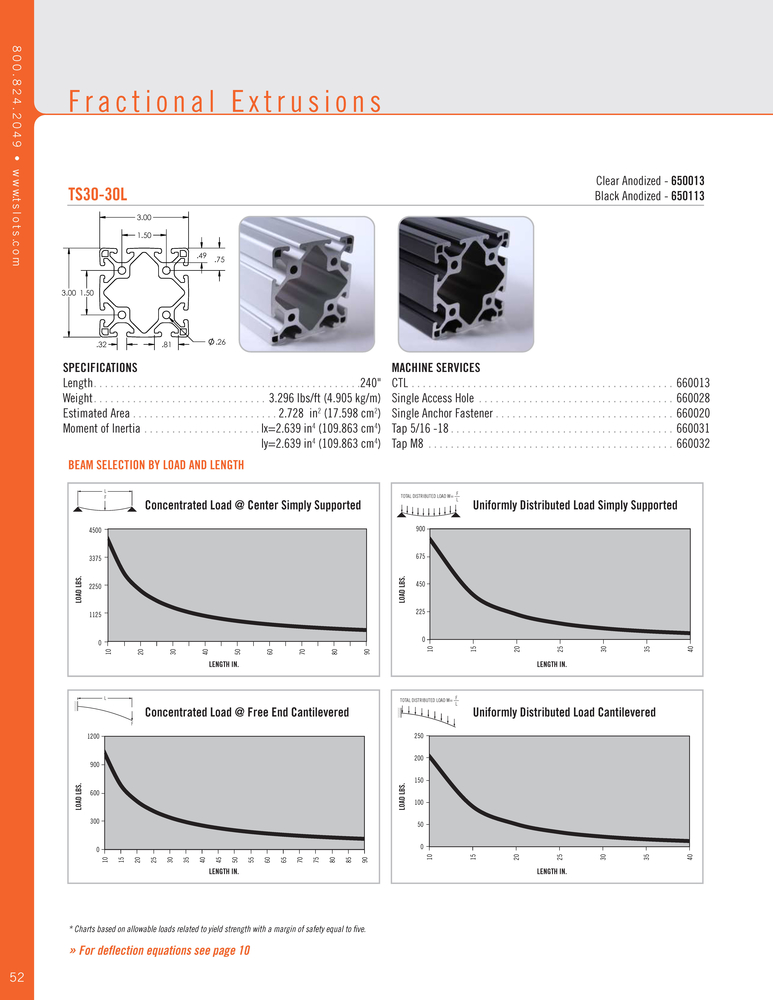

> 15s Extrusions PDF (2.41MB)
CAD Files:
* TSlots drawing files are available on TraceParts CAD Engine *
> Browse for files or search by part number
or Contact Us to request that files be emailed to you. Please specify desired file format.
