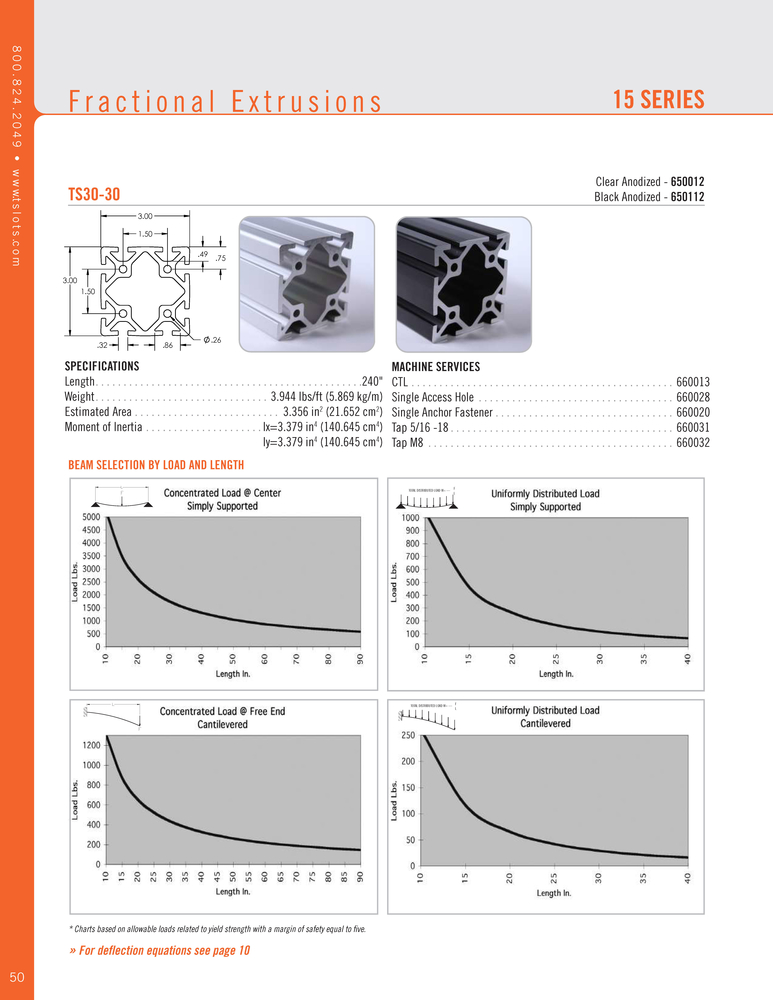

TS30-30: 3″ X 3″ T-Slotted Extrusion

Our 3″ x 3″ shape has a thicker wall and is designed for heavier and stronger structures where strength is critical. This shape can be used to run air lines or as a pressure or vacuum manifold up to 150 p.s.i.

SPECIFICATIONS
Stock Length: 240″
Weight: 3.944 lbs/ft (5.869 kg/m)
Estimated Area: 3.356 in2 (21.652 cm2)
Moment of Inertia: Ix=3.379 in4 (140.645 cm4); Iy=3.379 in4 (140.645 cm4)

Machining Services

Cut to Length: 660013

Access Hole: 660028

Anchor Fastener: 660020

Tap 5/16-18: 660031

Tap M8: 660032
