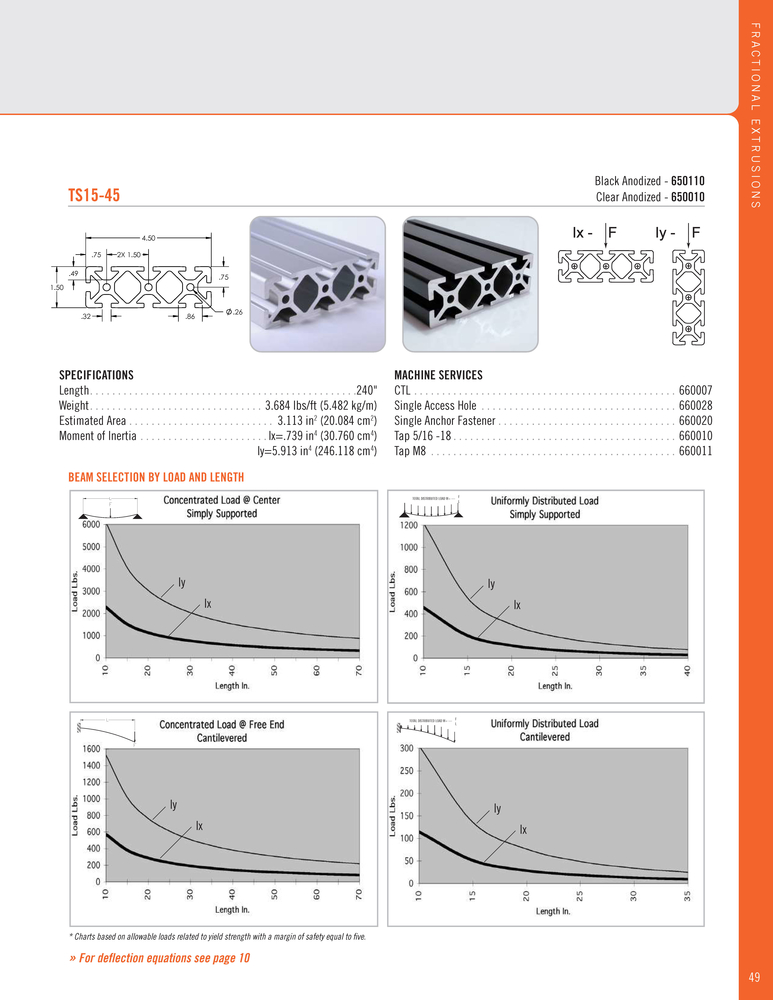

TS15-45: 1.5″ X 4.5″ T-Slotted Extrusion

The 1.5″ x 4.5″ shape is ideal for applications where long lengths without supporting structures are needed. Use the 1.5″ x 4.5″ in conveyor systems, linear motion, material handling and large machine frames. The two hollow centers are good for dual air manifolds up to 150 p.s.i.

SPECIFICATIONS
Stock Length: 240″
Weight: 3.684 lbs/ft (5.482 kg/m)
Estimated Area: 3.113 in2 (20.084 cm2)
Moment of Inertia: Ix=.739 in4 (30.760 cm4); Iy=5.913 in4 (246.118 cm4)

Machining Services

Cut to Length: 660007

Access Hole: 660028

Anchor Fastener: 660020

Tap 5/16-18: 660010

Tap M8: 660011
