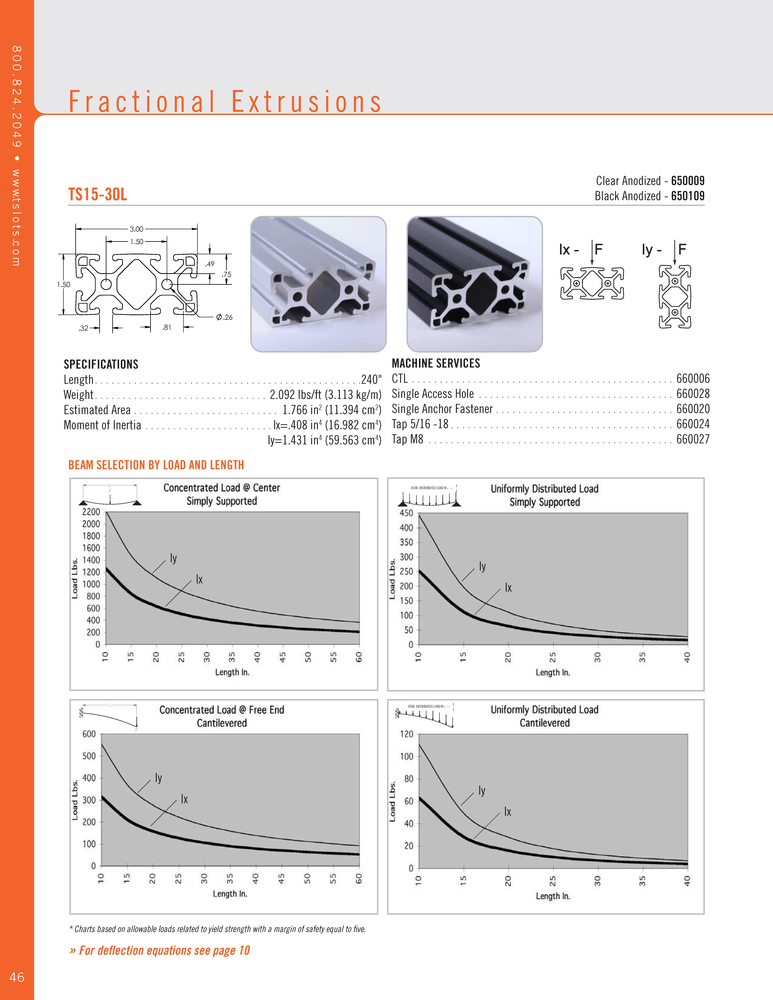

TS15-30L: 1.5″ X 3″ Lite T-Slotted Extrusion

The 1.5″ x 3.0″L shape is designed for larger structures where maximum strength is not as critical. Applications for 1.5″ x 3.0″L include framing and door tracks. This shape can be used to run air lines or as a pressure or vacuum manifold up to 150 p.s.i.

SPECIFICATIONS
Stock Length: 240″
Weight: 2.092 lbs/ft (3.113 kg/m)
Estimated Area: 1.766 in2 (11.394 cm2)
Moment of Inertia: Ix=.408 in4 (16.982 cm4); Iy=1.431 in4 (59.563 cm4)

Machining Services

Cut to Length: 660006

Access Hole: 660028

Anchor Fastener: 660020

Tap 5/16-18: 660024

Tap M8: 660027
