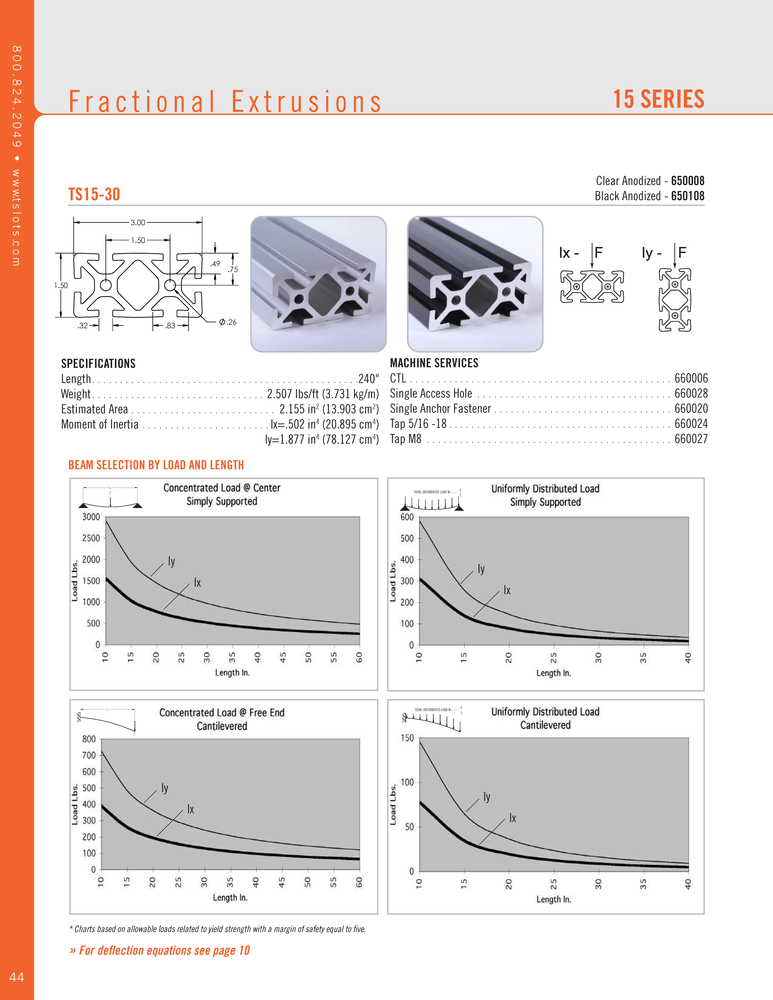

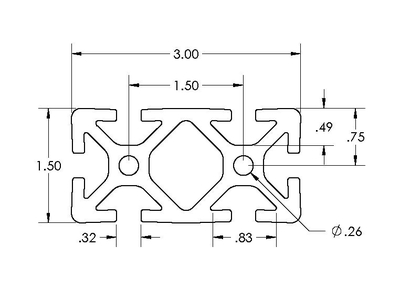

TS15-30: 1.5″ X 3″ T-Slotted Extrusion

The 1.5″ x 3.0″ shape is designed for larger and heavier structures where strength is required. Applications for 1.5″x3.0″ include framing systems, roller conveyor systems, fixturing, specialty machines, supports, linear slides and automated assembly systems. This shape can be used to run air lines or as a pressure or vacuum manifold up to 150 p.s.i.

SPECIFICATIONS
Stock Length: 240″
Weight: 2.507 lbs/ft (3.731 kg/m)
Estimated Area: 2.155 in2 (13.903 cm2)
Moment of Inertia: Ix=.502 in4 (20.895 cm4); Iy=1.877 in4 (78.127 cm4)

Machining Services

Cut to Length: 660006

Access Hole: 660028

Anchor Fastener: 660020

Tap 5/16-18: 660024

Tap M8: 660027
