TS15-15VL GR
TS15-15VL GR
Price per Inch: 0.50
1.5"x1.5" grooved very lite clear anodized
Model #: 650081
1.5"x1.5" grooved very lite clear anodized

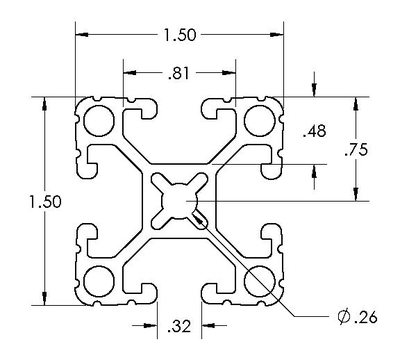

TS15-15VLGR: 1.5″ x 1.5″ Very Lite Grooved T-Slotted Extrusion
Stock Length: 240″
Weight: 0.898 lbs/ft (1.336 kg/m)
Estimated Area: 0.771 in2 (4.972 cm2)
Moment of Inertia: Ix=0.172 in4 (7.159 cm4); Iy=0.172 in4 (7.159 cm4)
Machining Services
Cut to Length: 660003
Access Hole: 660028
Anchor Fastener: 660020
Tap 5/16-18: 660034
Tap M8: 660033
Tap 3/8 � 16: 660009

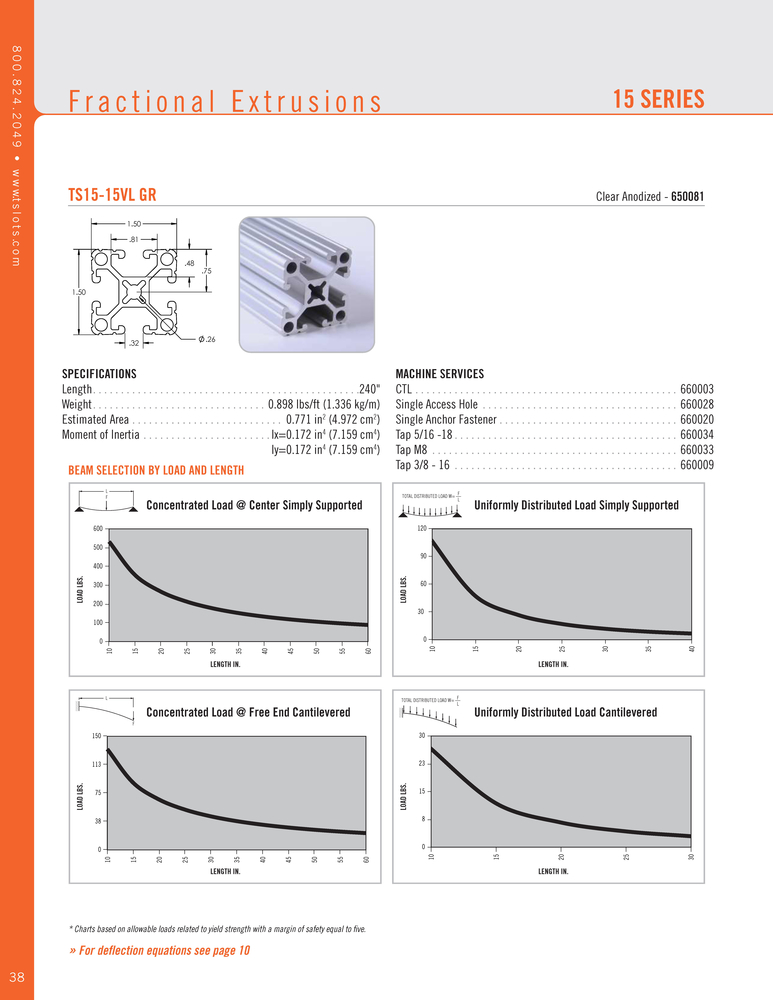

> 15s Extrusions PDF (2.41MB)
CAD Files:
* TSlots drawing files are available on TraceParts CAD Engine *
> Browse for files or search by part number
or Contact Us to request that files be emailed to you. Please specify desired file format.
