TS15-15L GR BLK
TS15-15L GR BLK
Price per Inch: 0.66
1.5"x1.5" grooved lite black anodized
Model #: 650148
1.5"x1.5" grooved lite black anodized
TS15-15LGR: 1.5″ x 1.5″ Lite Grooved T-Slotted Extrusion
Stock Length Clear: 240″
Weight: 1.066 lbs/ft (1.066 kg/m)
Estimated Area: 0.925 in2 (5.968 cm2)
Moment of Inertia: Ix=.194 in4 (8.075 cm4); Iy=.194 in4 (8.075 cm4)
Machining Services
Cut to Length: 660003
Access Hole: 660028
Anchor Fastener: 660020
Tap 5/16-18: 660034
Tap M8: 660033
Tap 3/8-16: 660009

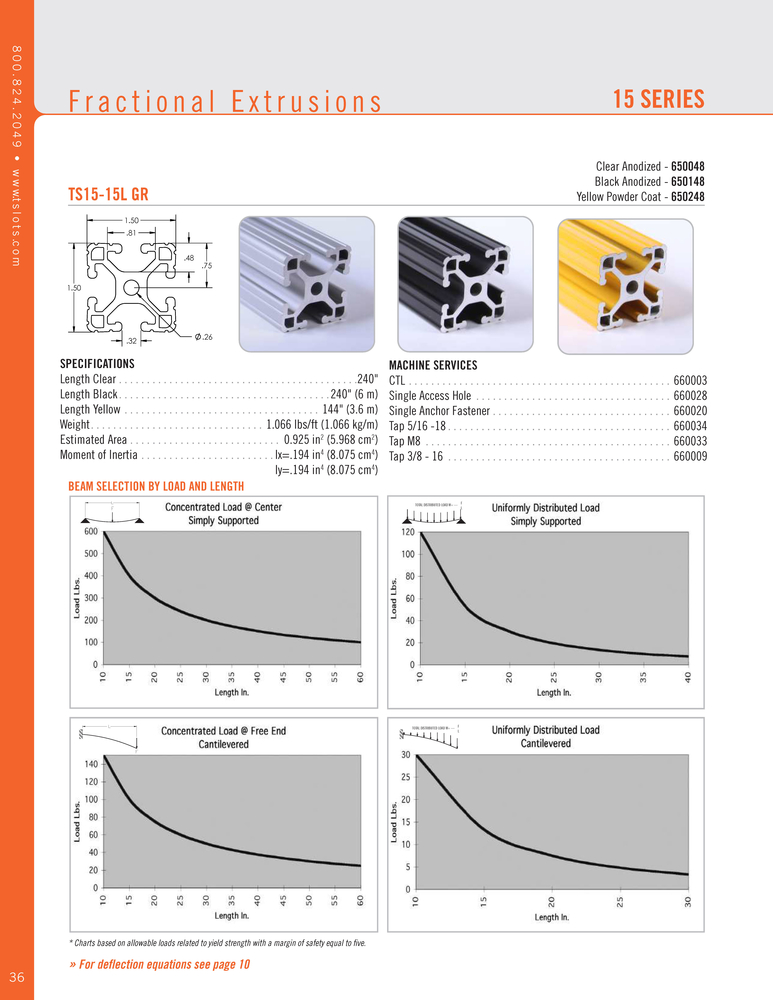

> 15s Extrusions PDF (2.41MB)
CAD Files:
* TSlots drawing files are available on TraceParts CAD Engine *
> Browse for files or search by part number
or Contact Us to request that files be emailed to you. Please specify desired file format.
