TS15-15L BLK
TS15-15L BLK
Price per Inch: 0.66
1.5"x1.5" lite black anodized
Model #: 650106
1.5"x1.5" lite black anodized
The 1.5″ x 1.5″L (lite) shape was designed for lighter weight and strength requirements than our 1.5″ x 1.5″. Applications include lighter load bearing structures, guarding and light weight frames.

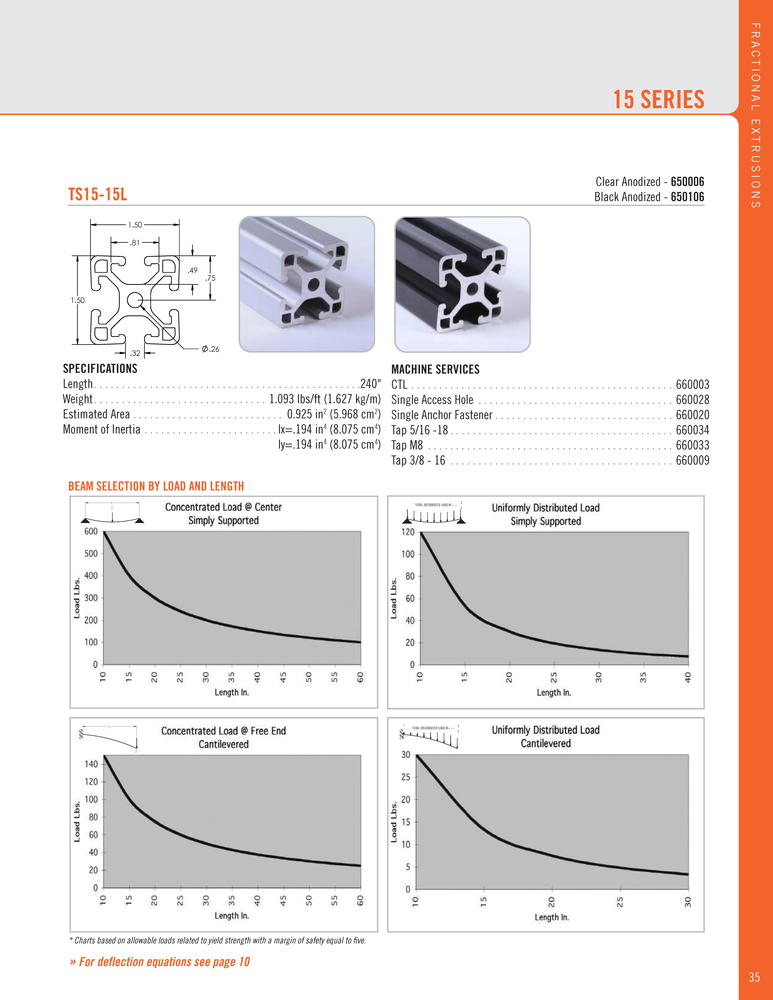

SPECIFICATIONS
Stock Length: 240″
Weight: 1.093 lbs/ft (1.627 kg/m)
Estimated Area: 0.925 in2 (5.968 cm2)
Moment of Inertia: Ix=.194 in4 (8.075 cm4); Iy=.194 in4 (8.075 cm4)
Machining Services
- Cut to Length: 660003
- Single Access Hole: 660028
- Single Anchor Fastener: 660020
- Single Tap 5/16-18: 660034
- Single Tap M8: 660033
- Single Tap 3/8-16: 660009
> 15s Extrusions PDF (2.41MB)
CAD Files:
* TSlots drawing files are available on TraceParts CAD Engine *
> Browse for files or search by part number
or Contact Us to request that files be emailed to you. Please specify desired file format.
