TS15-15L

TS15-15L | 15 Series Extrusion

TS15-15L

Price per Inch: 0.59

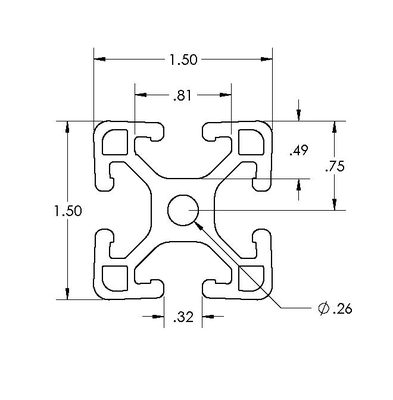

1.5"x1.5" lite 4-slot clear anodized

Model #: 650006

Price Per Piece: $0.00

1.5"x1.5" lite clear anodized

The 1.5″ x 1.5″L shape was designed for lighter weight and strength requirements than our 1.5″ x 1.5″. Applications include lighter load bearing structures, guarding and light weight frames.

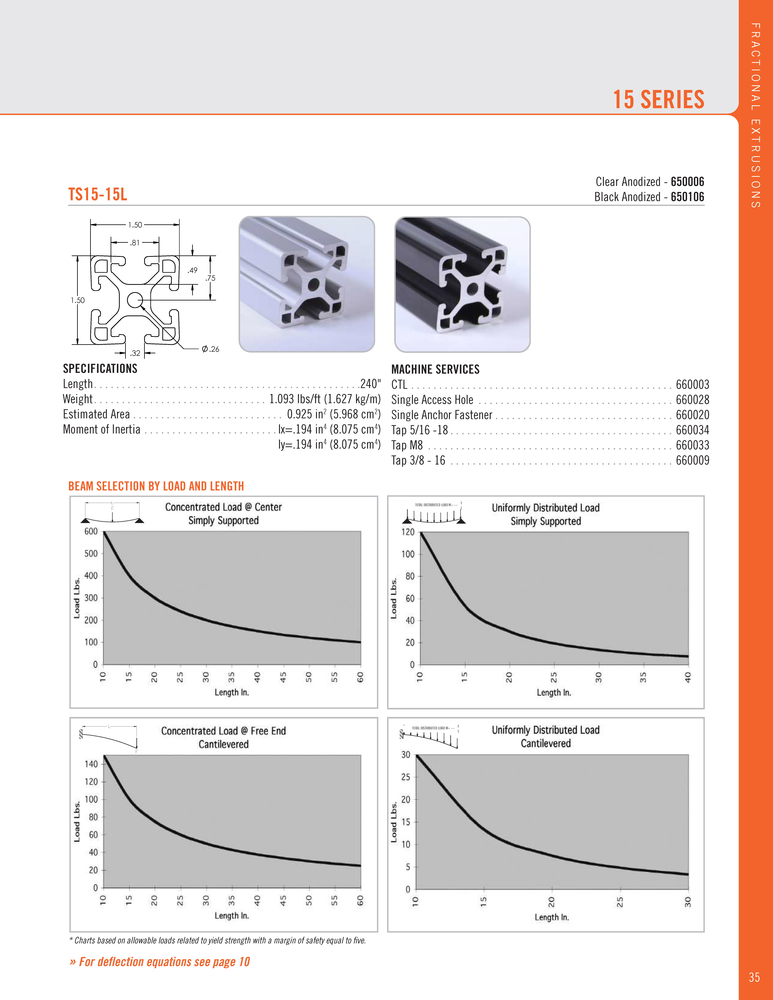

SPECIFICATIONS
Stock Length: 240″
Weight: 1.093 lbs/ft (1.627 kg/m)
Estimated Area: 0.925 in2 (5.968 cm2)
Moment of Inertia: Ix=.194 in4 (8.075 cm4); Iy=.194 in4 (8.075 cm4)

Machining Services

Cut to Length: 660003

Access Hole: 660028

Anchor Fastener: 660020

Tap 5/16-18: 660034

Tap M8: 660033

Tap 3/8-16: 660009

> 15s Extrusions PDF (2.41MB)

CAD Files:

* TSlots drawing files are available on TraceParts CAD Engine *

Browse for files or search by part number

or Contact Us to request that files be emailed to you. Please specify desired file format.
