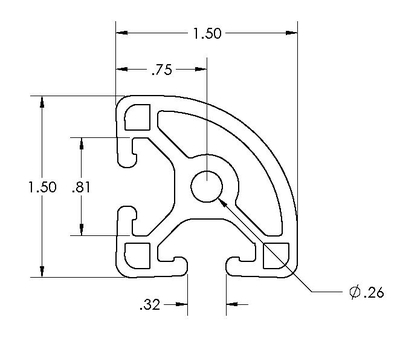

TS15-15QR: 1.5″ x 1.5″ Quarter Round T-Slotted Extrusion

Our 1.5″ x 1.5″ Quarter Round was designed for lighter weight and strength requirements than our 1.5″ x 1.5″. Applications include lighter load bearing structures, light weight frames, machine guarding, sound enclosures, small load work benches, display racks and panel mount racks. Adds aesthetics to your design.

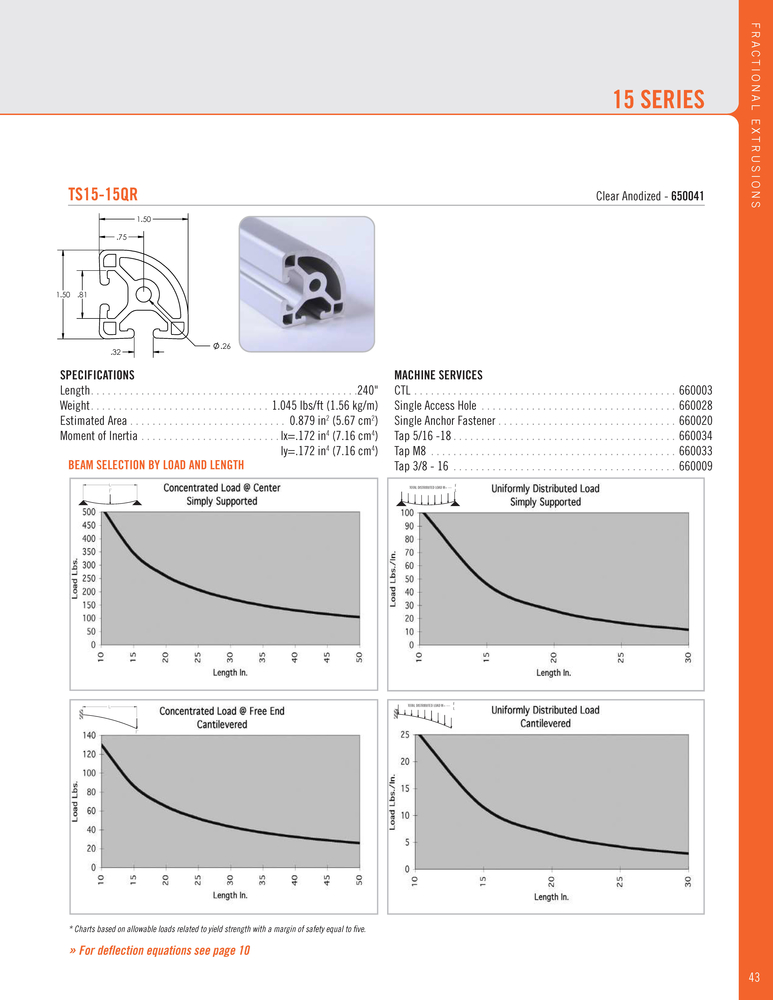

SPECIFICATIONS
Length: 240″
Weight: 1.045 lbs/ft (1.56 kg/m)
Estimated Area: 0.879 in2 (5.67 cm2)
Moment of Inertia: Ix=.172 in4 (7.16 cm4); Iy=.172 in4 (7.16 cm4)

Machining Services

Cut to Length: 660003

Access Hole: 660028

Anchor Fastener: 660020

Tap 5/16-18: 660034

Tap M8: 660033

Tap 3/8-16: 660009
