TS15-15 Monoslot BLK
TS15-15 Monoslot BLK
Price per Inch: 0.71

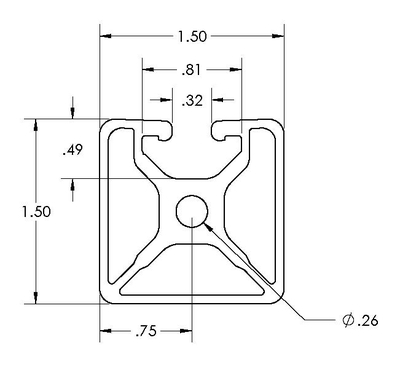

1.5"x1.5" monoslot black anodized
Model #: 650114
1.5"x1.5" monoslot black anodized

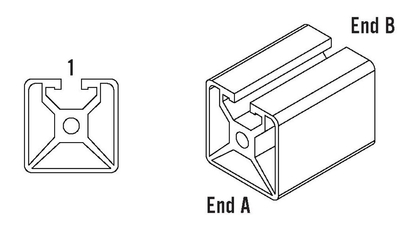

TS15-15 MONOSLOT: 1.5″ X 1.5″ Mono Slot T-Slotted Extrusion
The 1.5″ x 1.5″ MOS shape was designed for lighter weight and strength requirements where additional cleanliness and aesthetics is needed. Applications include machine enclosures, guarding and light weight frames.
SPECIFICATIONS
Stock Length: 240″
Weight: 1.014 lbs/ft (1.510 kg/m)
Estimated Area: 0.846 in2 (5.456 cm2)
Moment of Inertia: Ix=.178 in4 (7.408 cm4); Iy=.180 in4 (7.492 cm4)
Machining Services
Cut to Length: 660003
Access Hole: 660028
Anchor Fastener: 660020
Tap 5/16-18: 660034
Tap M8: 660033
Tap 3/8-16: 660009

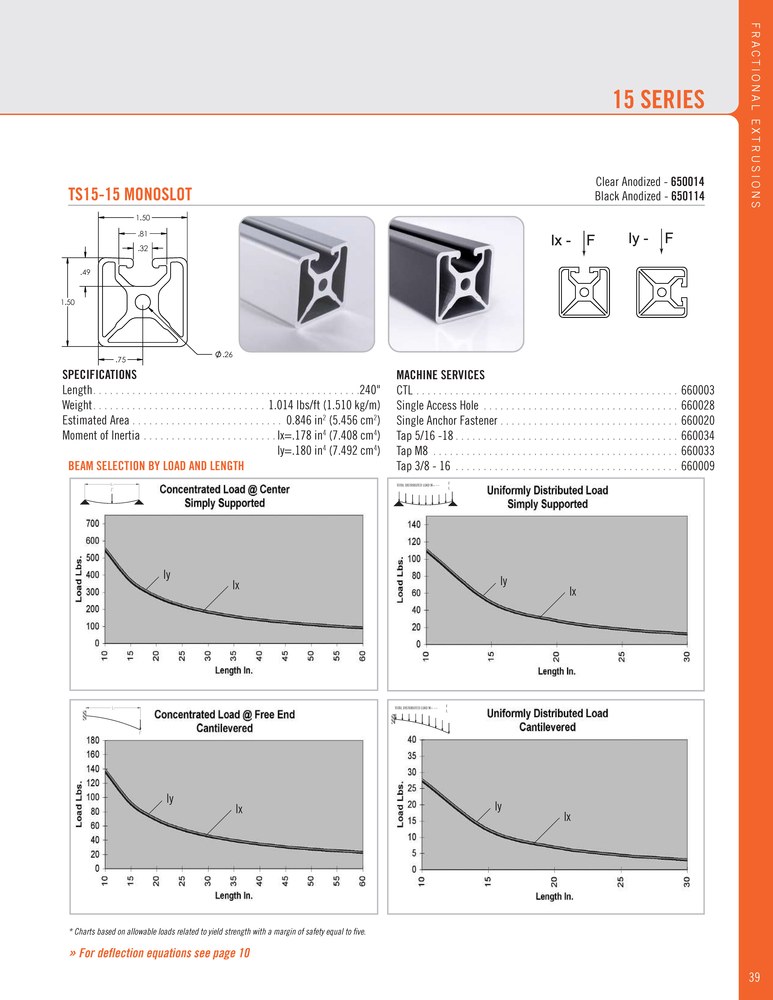

> 15s Extrusions PDF (2.41MB)
CAD Files:
* TSlots drawing files are available on TraceParts CAD Engine *
> Browse for files or search by part number
or Contact Us to request that files be emailed to you. Please specify desired file format.
