TS15-15 Bi Slot Opposite BLK
TS15-15 Bi Slot Opposite BLK
Price per Inch: 0.71
1.5"x1.5" Bi-Slot Opposite black anodized
Model #: 650116
1.5"x1.5" Bi-Slot Opposite black anodized

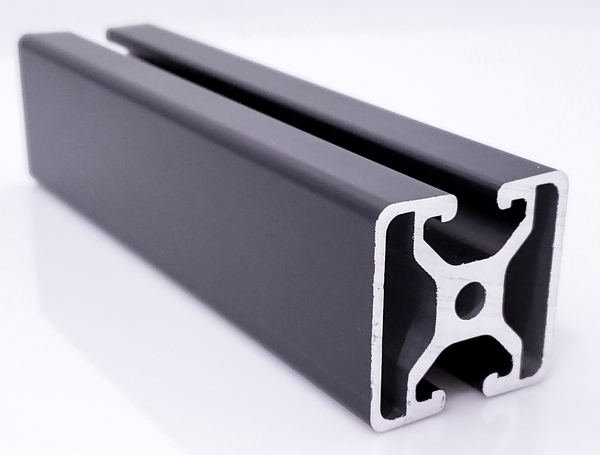

TS15-15 BISLOT OPP: 1.5″ X 1.5″ Bi Slot Opposite T-Slotted Extrusion
The 1.5″ x 1.5″ BOS shape was designed for lighter weight and strength requirements where additional cleanliness and aesthetics is needed. Applications include machine enclosures, guarding and light weight frames.
SPECIFICATIONS
Length: 240″
Weight: 1.008 lbs/ft (1.499 kg/m)
Estimated Area: 0.840 in2 (5.418 cm2)
Moment of Inertia: Ix=.172 in4 (7.159 cm4); Iy=.176 in4 (7.325 cm4)
Machining Services
Cut to Length: 660003
Access Hole: 660028
Anchor Fastener: 660020
Tap 5/16-18: 660034
Tap M8: 660033
Tap 3/8-16: 660009

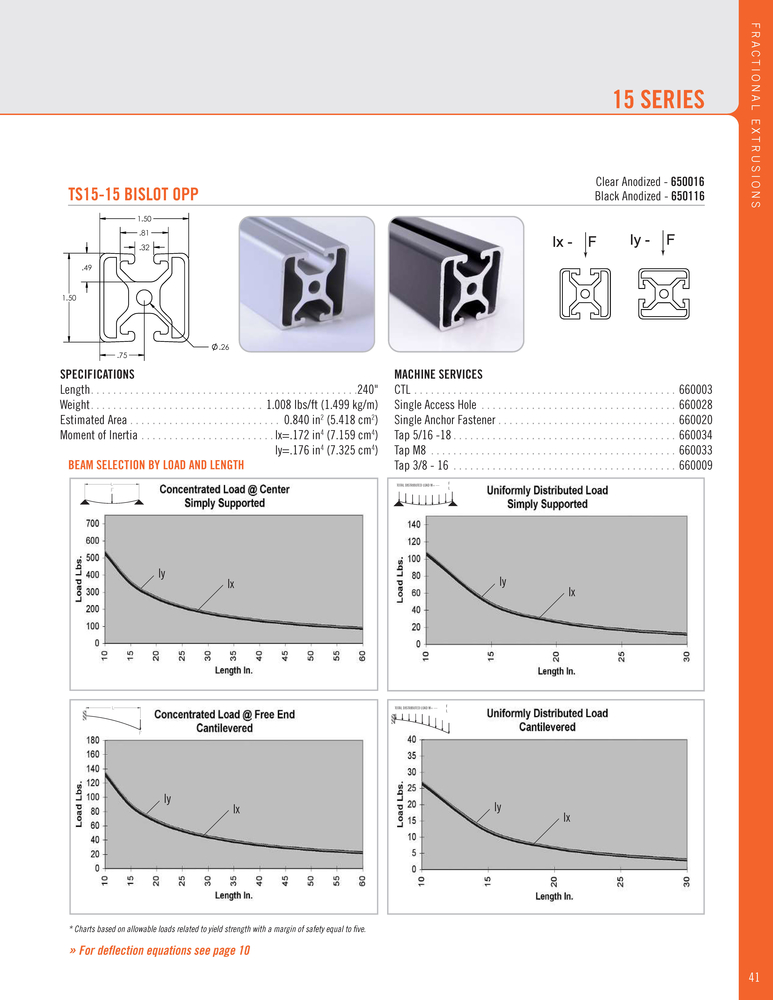

> 15s Extrusions PDF (2.41MB)
CAD Files:
* TSlots drawing files are available on TraceParts CAD Engine *
> Browse for files or search by part number
or Contact Us to request that files be emailed to you. Please specify desired file format.
