Specs

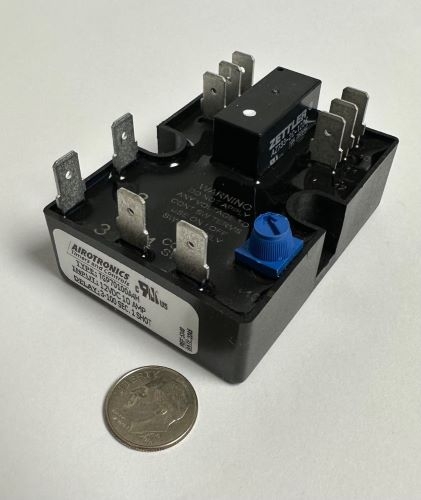

Airotronics Single-Shot Double Pole Double Throw Timer
TGPL series Cube Relay Single Shot On Make timers are a unique combination of digital CMOS timing circuitry with a relay output in a compact 2" x 2" configuration. These units provide the same functional performance as plug-in relay timers, but at significant cost savings. Key features: Uses a live or hot initiate switch; relay common is totally isolated.
- 12VDC operating voltage
- 10 Amp capacity
- 3-100 second off-delay, adjustable via knob
- 1/4" spade terminals
This timer can be used for many functions, but in particular, this model could be used when the user desires for an actuator to extend immediately upon the push of a button (or closure of any type of switch), and to retract automatically upon the expiration of the preset extend time.
