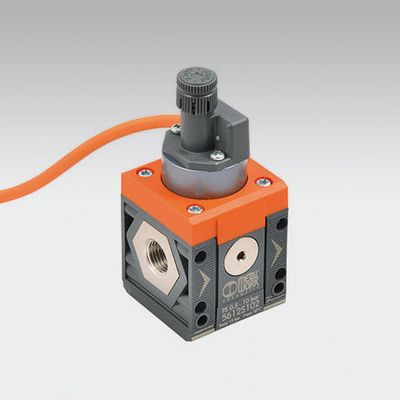

Pressure Switches
Syntesi® pressure switches feature a high degree of miniaturization and a modern attractive design. As they are extremely modular, the Syntesi series can be installed facing up or down. They come ready assembled with a 78.8 inch cable or an M8 connector with a 11.8 inch cable.
The switch contacts are single pole double throw, which means it can be wired normally open or normally closed. It can be adjusted via a knurled push-lock handle. On the front and back there is a port (1/8" BSPP for size 1 and 1/4" BSPP size 2) that can be used with pressure gauges or as an additional air outlet.
Listed below are prewired switches with 78" cable. Contact us or see Pressure Switches PDF for versions with 12" pigtail & M8 quick connector.
