PPS-1-10-12V
PPS-1-10-12V
Price: $112.30

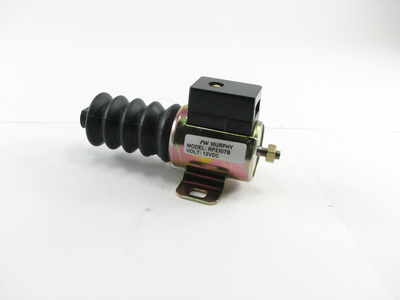

PUSH PULL SOLENOID, 12VDC, 1" TRAVEL, 10-22 LBS FORCE, RP2307B
Model #: PPS-1-10-12V
Versatility- A single unit for push or pull applications
- 12VDC high speed operation |
- 22 lbs force at min stroke, 10 lbs at max stroke, 25 lbs holding (without return spring) |
- 12 lbs force at min stroke, 6 lbs at max stroke, 13 lbs holding (with return spring) |
- Continuous duty rated |
- 52 amps inrush, 1.5 amps holding current @ 12VDC |
- Will operate at any stroke less than maximum (1") |

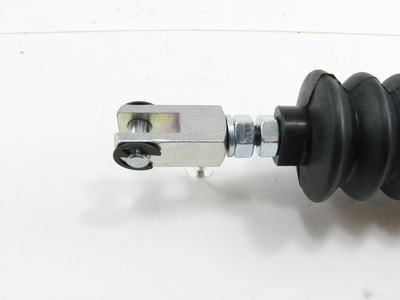

- Unit comes complete with return spring, rubber boot, threaded shaft and nut |
- 24 oz shipping weight |
- Energize Coil should not be energized for longer than 15 seconds to avoid coil damage |
- Precautions should be taken to avoid overheating Energize Coil via proper wiring/switching setup and/or use of SD85 Energize/Hold control relay |
- Allow 15 minutes cooling time between activations of the Energize Coil (less for shorter energize coil cycles) |
- Energize Coil must fully seat the plunger to allow Hold Coil to function properly |
- Do not mount with boot down (unit is recommended for horizontal application only) |
- Do not apply grease or lubrication to parts |
- Use minimum 10 AWG wire size as noted in wiring diagram and keep wire lengths to a minimum |
- Caution: The solenoid housing is hot to the touch. A temperature rise to 185°F (85C) is permissible |
