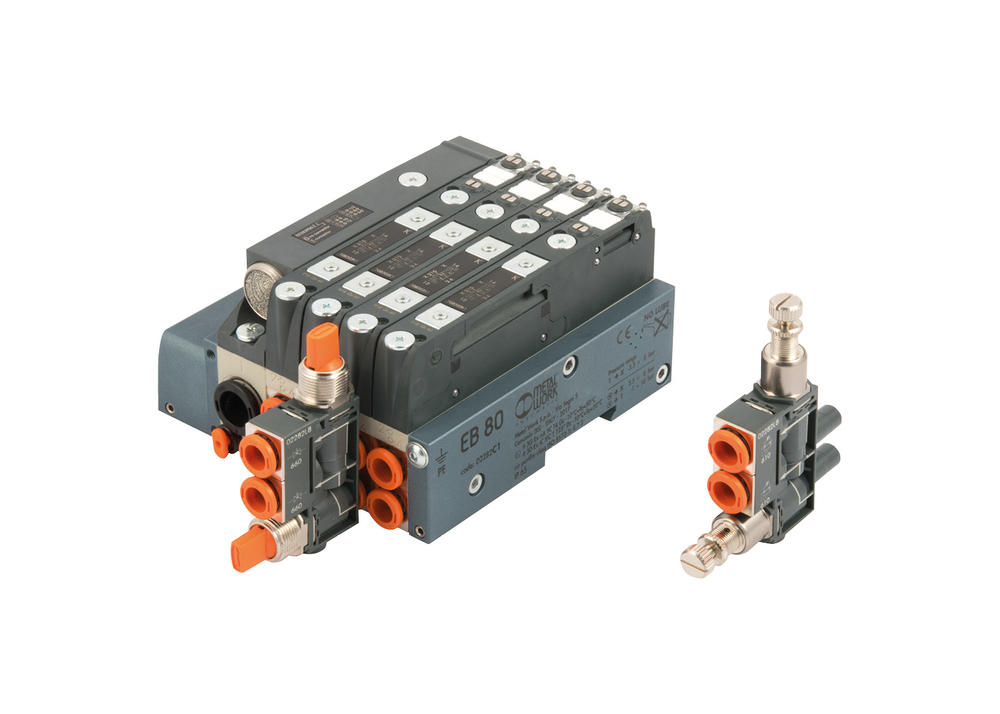

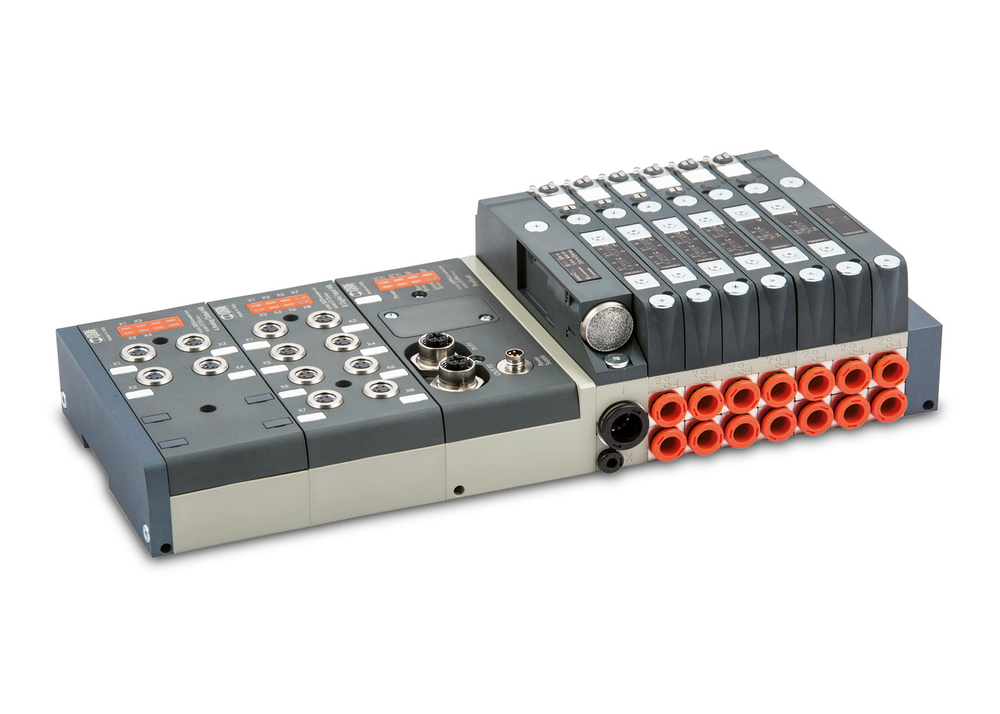

MetalWork EB80 Solenoid Valve Island System

EB 80 is defined as an electro-pneumatic system as it would be simplistic to use the term "solenoid valve island". In effect, a single assembly can combine solenoid valves of all types, multi-position bases, pneumatic and electric supplies arranged as desired in a system, digital or analog input or output signal control modules and much more.

The EB 80 system is protected by numerous patents and utility models, which enhance the most innovative design solutions. The possible combinations are endless, but the most amazing thing is that they can be obtained using a small number of basic components. In order to achieve this objective, a single size of small, yet high-performance valves to cover the vast majority of applications was conceived.

A single electronic control unit is provided when supplying 12VDC or 24VDC valves with multi-pole cables or with a field bus for each protocol. All EB 80 versions come with an efficient diagnostic system. The EB 80 catalog consists of a first overall introductory chapter followed by a chapter for each subsystem. NSF H1-certified grease is used to lubricate the valve spool and seals.

Download EB80 PDF Catalog (40MB)
