Metal Work Guided Rodless Air Cylinders

> MetalWork V-Guide Rodless Cylinder catalog pages

> Accessories/Parts catalog pages

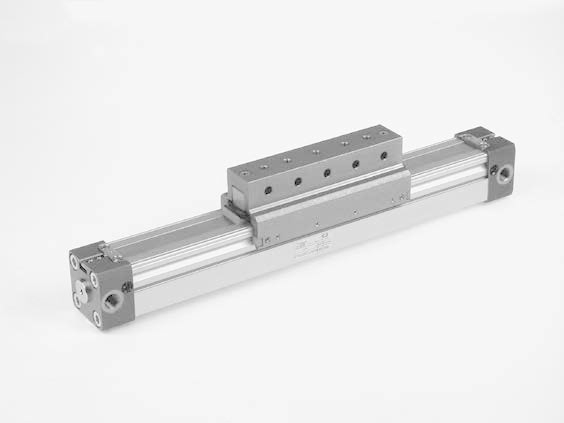

Two opposed V-shaped guide units in the anodized aluminium cylinder body, on which a cover with two acetalic resin wear- resistant pads slide

The cover has a tip-up-type carriage-piston rod coupling. In this way the carriage only transfers loads axially and does not support loads and moments in other directions. The play of the pads can be adjusted by means of side threaded grub screws. Therefore, it is possible to recover the wear of pads, which can be replaced without the need for dismantling the cylinder.

This family of rodless cylinders has the same features as the basic versions: such as an integrated adjustable pneumatic cushioning, sensor slots and accessory holding slots. A version is available with adjustable limit switches and hydraulic decelerators. They can be purchased separately and applied at any time to the basic cylinders as well.
