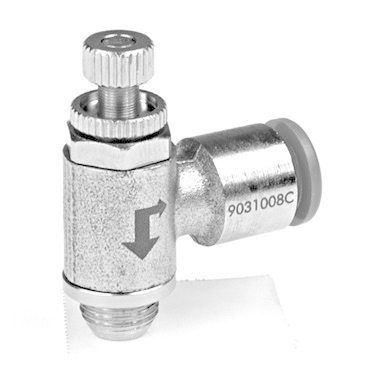

Metal Work Flow Control Valves (Nickel Plated Brass)

The job of flow microregulators (flow controls) is to regulate speed of pneumatic cylinders.

The configuration of both type C (to be mounted on the cylinder port, meter OUT) and type V (to be mounted on the valve port, meter IN) is such as to ensure full flow on feed and regulated flow on discharge. Type B (bidirectional needle valve) can be used to regulate the flow in both directions.

Flow microregulators have reduced dimensions and fine adjustment in the first turns; they can be adjusted using the knob and/or screwdriver; setting can be locked in by tightening the ring lock nut.

Main features:

• Reduced dimensions
• Excellent regulation
• Adjustment with either a screwdriver and/or a knob, can be locked with a ring nut
• Available in all sizes (from 10-32 UNF to 1/2" NPT and 5/32" to 1/2" tube)
• Flow control body can rotate after installation for positioning

Flow Micro Regulator Catalog Pages: mw-flow-controls.pdf
