The MB3 Brackets fit on all our Heavy Duty Actuator models and can take up to 5000lbs of force. They fit on both ends and allow the actuator to still rotate if required giving your application freedom to move. The quick release pin makes it easy to install your actuators too. These Brackets allow the Actuators to swivel 180 degrees and are plated for rust resistance.

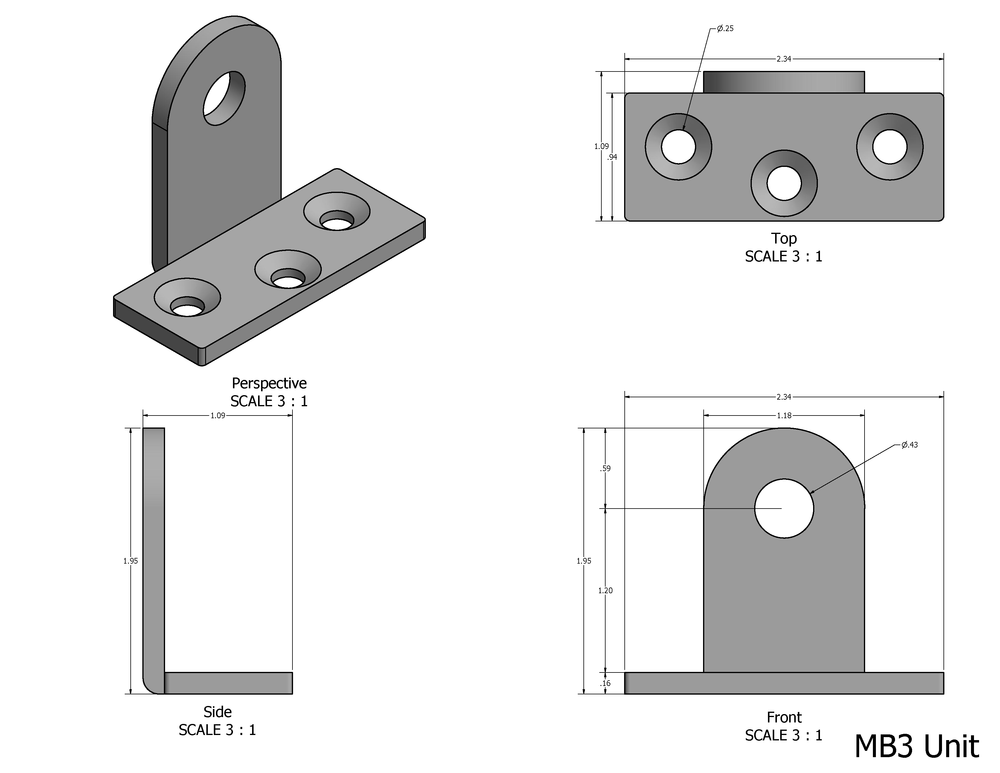

Specially developed for use with the Heavy Duty Rod Actuator, Heavy Duty Track Actuator models, and the Deluxe Actuator line, the MB3 bracket was the first mounting bracket by Firgelli Automations for heavy duty applications. This bracket leaves the actuators free to rotate over 180 degrees which makes installation very flexible and simple. Three holes are on the base of the bracket for quick mounting. The MB3 is sold as a single unit, and comes with the cross-pin as well as a cotter pin to secure it; screws for mounting the bracket are not included.

• low profile
• fits both ends of the FA-400 & FA-1000 & FA-HF series actuators
• free to rotate almost 180 degrees
• sold as single units, with the cross bolt
• cross bolt measures 0.382" diameter
