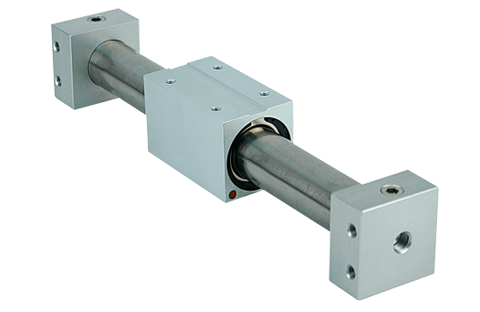

Fabco FGYB and FGYR Magnetically Coupled Rodless Cylinders

Saves Space Without Sacrificing Output Motion

When the application calls for a pneumatic cylinder inside a space-constrained area, our FGYB and FGYR Series of rodless cylinders can be an ideal choice. These cylinders are designed so there is no piston rod protruding from the unit. Instead the external slider is magnetically coupled to the piston, providing good output motion while saving space. The FGYB Series is designed for basic mounting, and Series FGYR allows through-hole and tapped mounting and magnetic position sensing. Both styles include a tapped hole pattern on two adjacent sides of the slider.

> FGYB_FGYR Catalog Pages (1.1 Mb)

• Bore sizes: 10, 15, 20, 25, 32, 40 millimeters
• Strokes: up to 1,500 millimeters
• Tapped hole pattern on two adjacent sides of the slider
• Mounting: Nose type (FGYB Series) and block type (FGYR Series)
• Magnetic piston standard (FGYR Series)
