FA-H3CR-AS
FA-H3CR-AS
Price: $45.00
12 Volt Double-Pole Double-Throw Timer Relay - DPDT Relay
Model #: FA-H3CR-AS

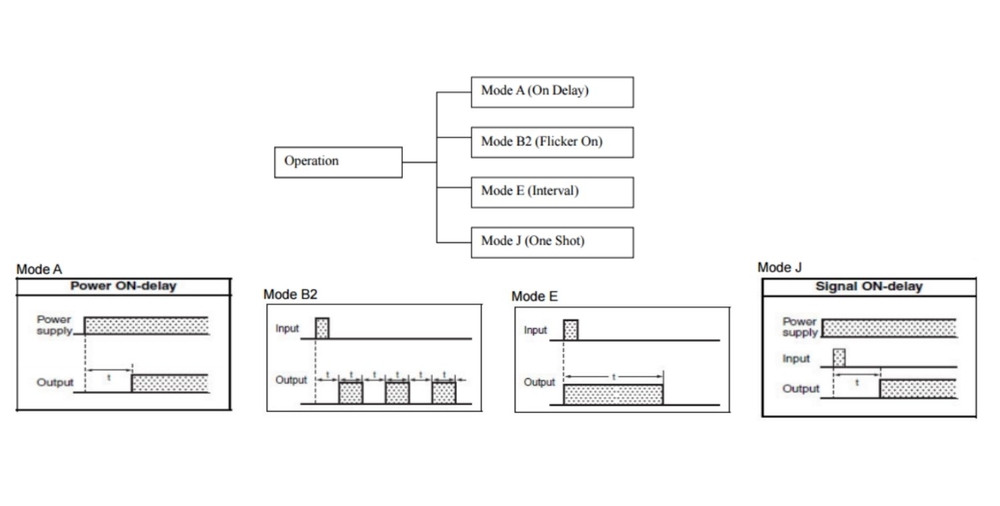

Need your actuator or DC motor to automatically run back and forth on a set time? Then this DPDT Timer relay is for you, see the 4 different operation modes in the manual. DPDT means Double Pole Double Throw. This is required for reversing polarity which is also required for reversing direction of a Linear Actuator or motor.

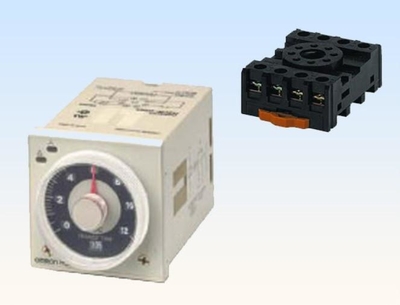

Model # FA-H3CR-AS DPDT Relay with Timer(Double Pole Double Throw)
Multi-function Solid State Timer Allows Wide Range of power inputs 12V-48VDC
Time Ranges From 0.05 Seconds to 300 hours
Easy Set Up and Straight Forward Use with on panel display showing when power is on and unit is functioning. No complicated parts or difficult directions set the time, set the mode (function) and provide power and you are done. Wide range of application for use in periodic motion applications. Comes with wiring quick release socket
