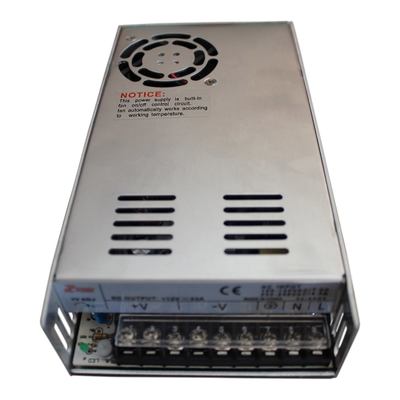

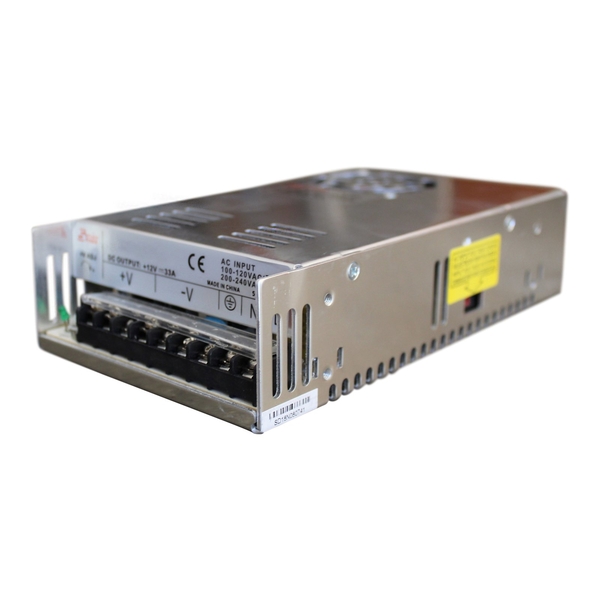

AC to DC Power Supply 12v 30A
AC to DC Power Supply 12v 30A
Price: $85.00
FA-PA-12V-30A-IP20
Model #: FA-PA-12V-30A-IP20
This 12V DC power supply is the most popular way to power home automation or custom prototype applications. The Firgelli Automations power supply is a simple and easy approach to bringing 12 volt motion assemblies to life. Compatible with any device that requires 12v DC input.
Inductive load type so ideal for high current start-up actuators like the Deluxe Rod, Heavy Duty Rod or Industrial Actuators.
MODEL: FA-PA-12V-30A-IP20
OUTPUT VOLTAGE: 12 Volt
VOLTAGE TOLERANCE: +/-1%
OUTPUT CURRENT: 30 Amps
LINE & LOAD STABILITY: +/-0.5%
POWER: 360 Watts
EFFICIENCY: 81%
OUTPUT VOLTAGE RANGE: 12 - 13.2 Volt DC
INPUT VOLTAGE RANGE: 90 ~ 132 VAC/180 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63 Hz
INPUT CURRENT: 6.5A/115V 4A/230V
INRUSH CURRENT: 25A/115A 50A/230A
LEAKAGE CURRENT:＜3.5mA/240VAC
OVERLOAD PROTECTION: 105% ~ 150%
TEMPERATURE: -10-50 ℃
TEMPERATURE COEFFICIENT: +/-0.03% (0~50 ℃)
VIBRATION: 10 ~ 500 Hz, 2G 10 min/ 1 cycle

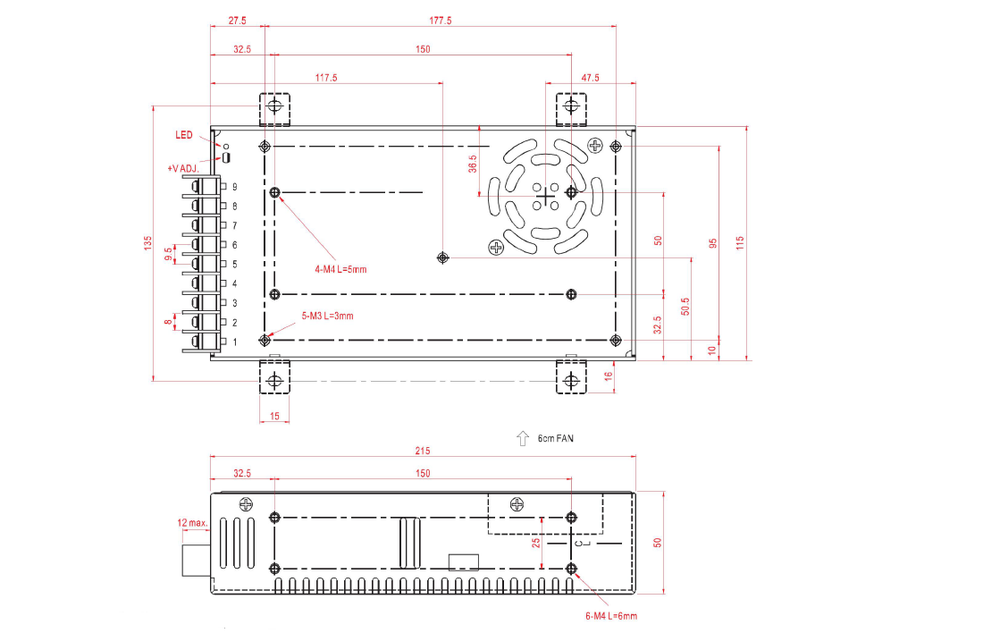

SIZE: 215mm x 115mm x 50mm WEIGHT2.1 lbs.
