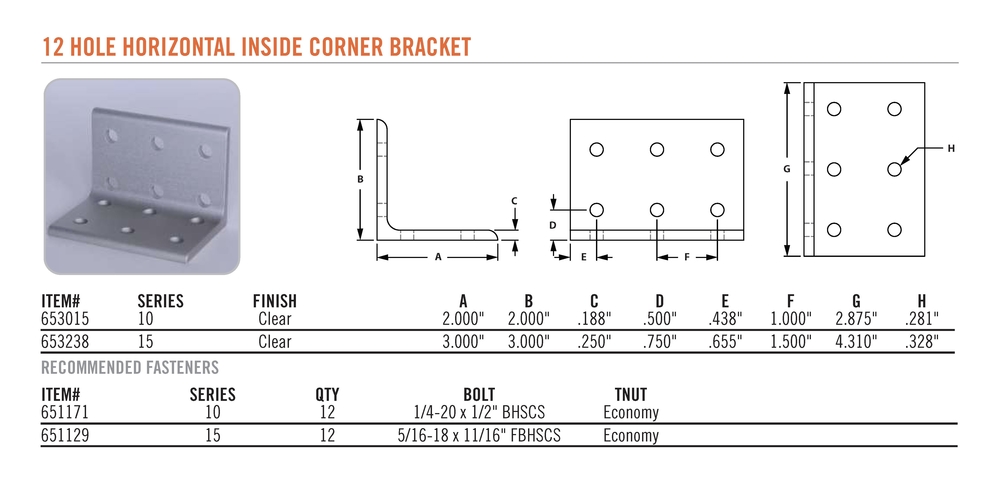

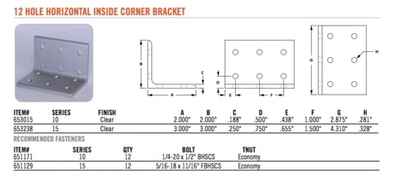

Anodized aluminum 12 hole horizontal corner bracket fastening method connects two extrusion profiles together at a 90-degree connection. This 12 hole horizontal corner bracket doesn't require any machining and engages the 2-degree lock feature. For tightening assembly hardware see Recommended Fasteners.

______________________________________________________________________

Recommended Fasteners

MOUNT TO T-SLOT EXTRUSION

ITEM # 651171 (Qty 12) 1/4-20 x 1/2″ BHSCS & Economy T-Nut
