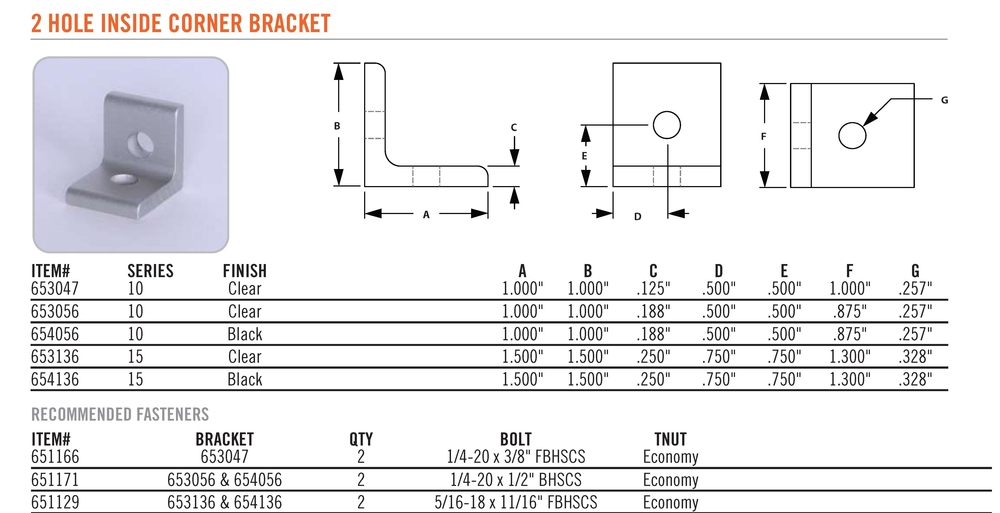

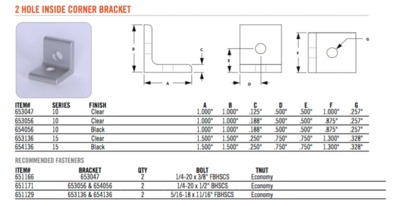

653047 10s 1/8" 2-Hole Inside Corner Bracket
Anodized aluminum 2 hole bracket that doesn't require any machining and can be positioned anywhere along the t-slotted bar. 2 hole bracket engages the 2-degree lock feature. For tightening assembly hardware see Recommended Fasteners.
______________________________________________________________________
Recommended Fasteners
MOUNT TO T-SLOT EXTRUSION
ITEM #651166 (Qty 2)1/4-20 x 3/8″ FBHSCS & Economy T-Nut
> Fractional Brackets Catalog PDF (689 Kb)
CAD Files:
* TSlots drawing files are available on TraceParts CAD Engine *
>Browse for files or search by part number
or Contact Us to request that files be emailed to you. Please specify desired file format.
