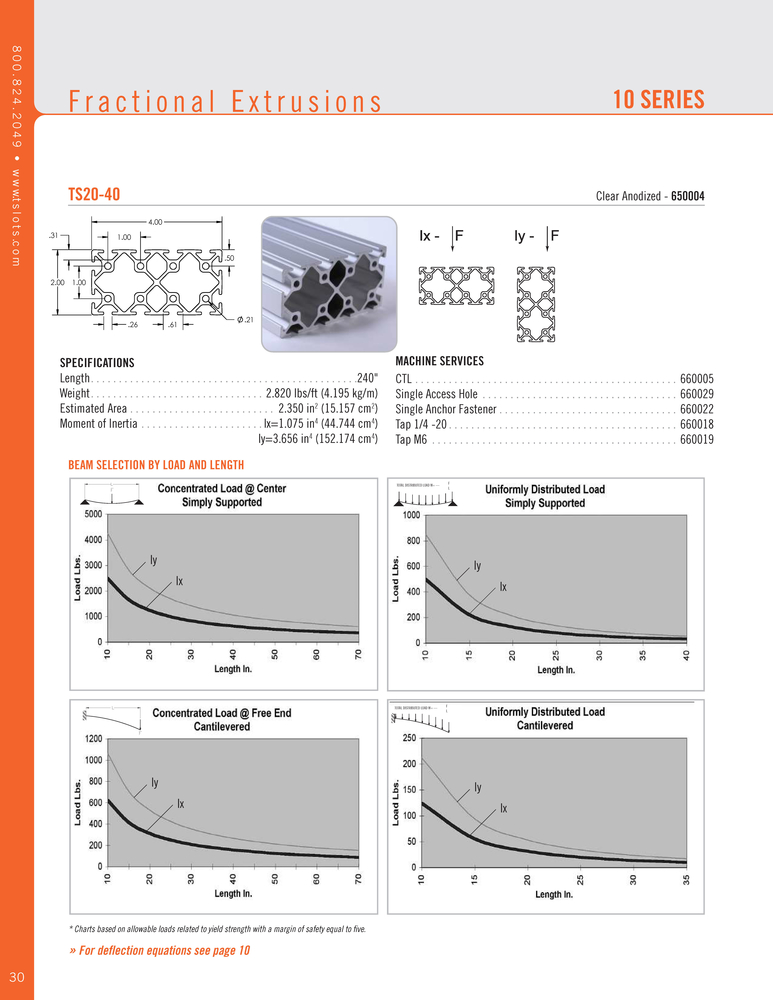

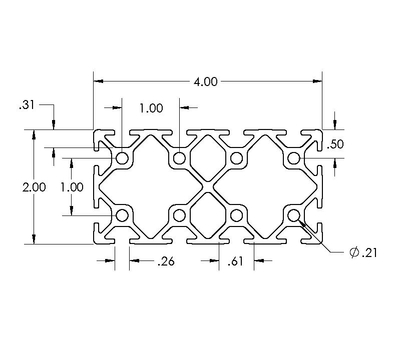

TS20-40: 2″ X 4″ T-Slotted Extrusion

Our 2″ x 4″ shape is the largest 10 S shape available. It was created for structures that require very high load requirements. The 2″ x 4″ shape is ideal for heavy duty machine bases, support structures, stairways, mezzanines and anywhere where maximum structural strength is needed. The 2″ x 4″ shape also has four hollow centers that will accommodate multiple air manifolds. Pressure up to 150 p.s.i.

SPECIFICATIONS
Stock Length: 240″
Weight: 2.820 lbs/ft (4.195 kg/m)
Estimated Area: 2.350 in2 (15.157 cm2)
Moment of Inertia: Ix=1.075 in4 (44.744 cm4); ly=3.656 in4 (152.174 cm4)

Machining Services

Cut to Length: 660005

Access Hole: 660029

Anchor Fastener: 660022

Tap 1/4-20: 660018

Tap M6: 660019
