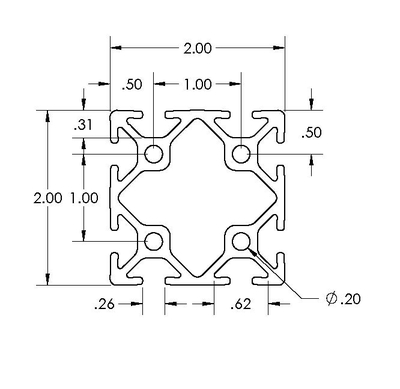

TS20-20: 2″ X 2″ T-Slotted Extrusion

The 2″ x 2″ extrusion is ideal for structures where more strength is needed for smaller frame assemblies. The center of the 2″ x 2″ can be used to run air lines or serve as a pressure or vacuum manifold up to 150 p.s.i. The 2″ x 2″ TSLOTS extrusion accepts 10 Series fasteners, accessories and stanchions.

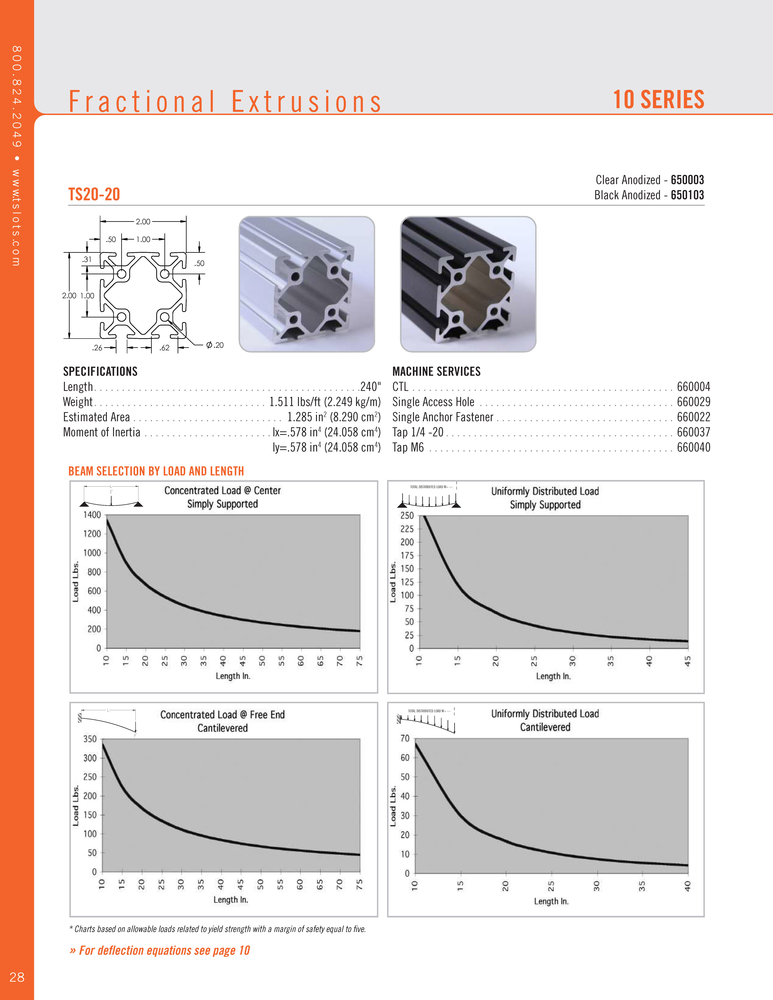

SPECIFICATIONS
Stock Length: 240″
Weight: 1.511 lbs/ft (2.249 kg/m)
Estimated Area: 1.285 in2 (8.290 cm2)
Moment of Inertia: Ix=.578 in4 (24.058 cm4); Iy=.578 in4 (24.058 cm4)

Machining Services

Cut to Length: 660004

Access Hole: 660029

Anchor Fastener: 660022

Tap 1/4-20: 660037

Tap M6: 660040
