TS10-10 Bi Slot Adjacent

Price per Inch: 0.30

1"x1" Bi Slot Adjacent clear anodized

Model #: 650061

Enter Length in Inches (Total Inches, including Fraction of Inches, cannot exceed 94)

Select Fraction of Inches:

Price Per Piece: $0.00

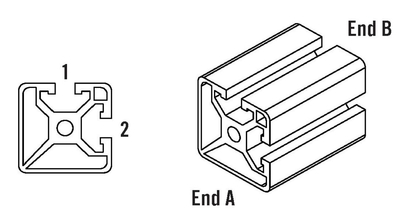

Anchor Counterbore 660022 @ A1 +$2.62

Anchor Counterbore 660022 @ A2 +$2.62

Anchor Counterbore 660022 @ B1 +$2.62

Anchor Counterbore 660022 @ B2 +$2.62

1"x1" Bi Slot Adjacent clear anodized

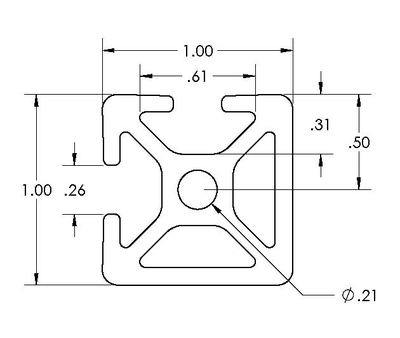

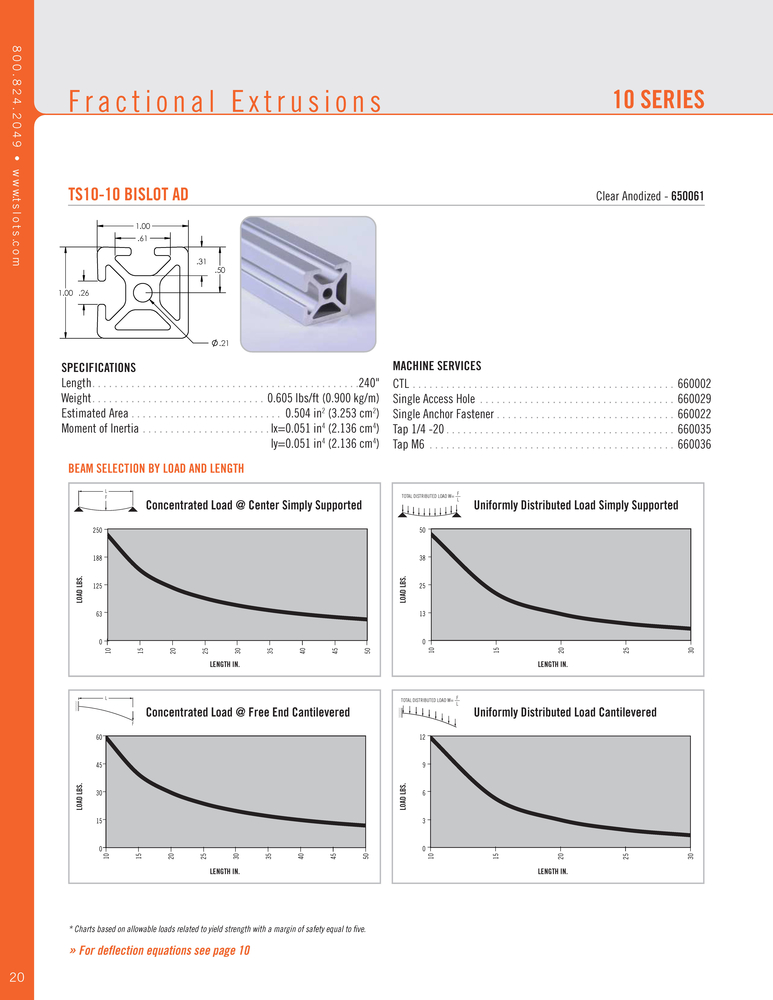

TS10-10: 1″ X 1″ T-Slotted Extrusion

The 1″ x 1″ extrusion is ideal for machine guarding, sound enclosures, small load work benches, display racks and panel mount racks. Mount accessories such as valves, sensors, switches, slatwall panels, DIN rails and many others directly to TSLOTS.

Stock Length: 240″
Weight: 0.605 lbs/ft (0.900 kg/m)
Estimated Area: 0.504 in2 (3.253 cm2)
Moment of Inertia: Ix=0.051 in4 (2.136 cm4); Iy=0.051 in4 (2.136 cm4)
