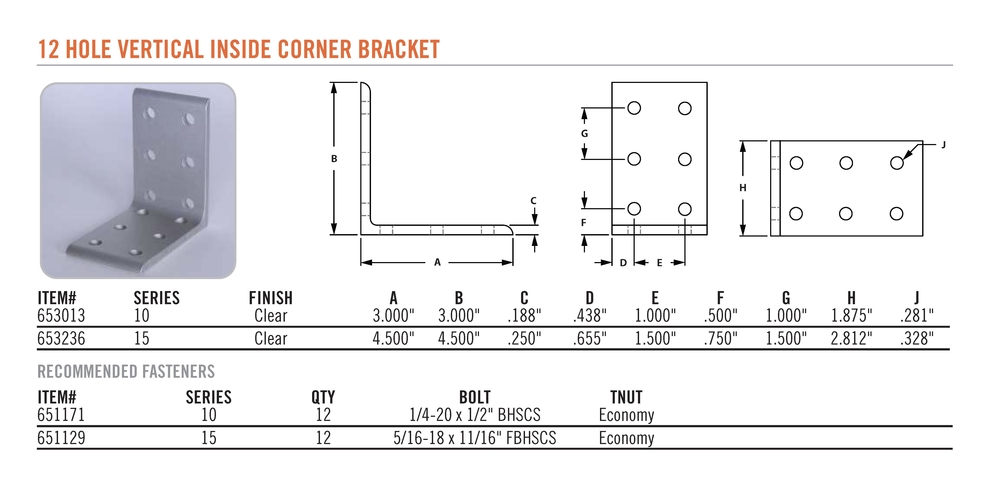

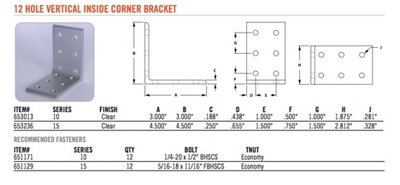

653236 15s 12-Hole Vertical Inside Corner Bracket
Anodized aluminum 12 hole corner bracket fastening method connects two extrusion profiles together at a 90-degree connection. This 12 hole corner bracket doesn't require any machining and engages the 2-degree lock feature. For tightening assembly hardware see Recommended Fasteners.
______________________________________________________________________
Recommended Fasteners
MOUNT TO T-SLOT EXTRUSION
ITEM # 651129 (Qty 12) 5/16-18 x 11/16″ FBHSCS & Economy T-Nut
> Fractional Brackets Catalog PDF (689 Kb)
CAD Files:
* TSlots drawing files are available on TraceParts CAD Engine *
> Browse for files or search by part number
or Contact Us to request that files be emailed to you. Please specify desired file format.
