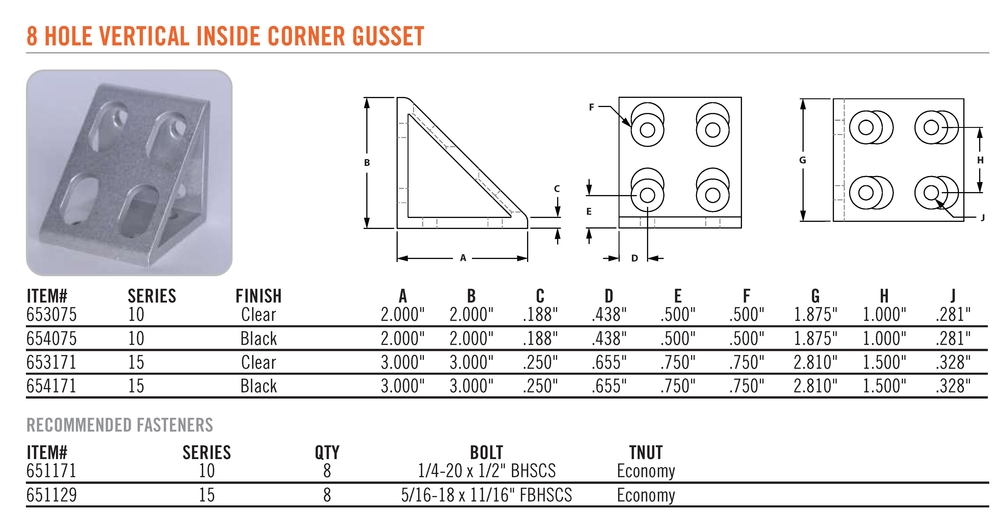

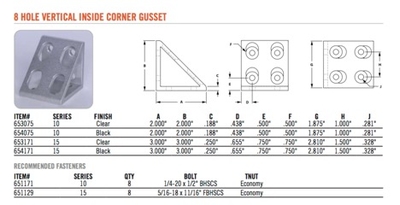

653171 15s 8-Hole Vertical Inside Corner Gusset
Anodized aluminum 8 hole corner gusset that doesn't require any machining and can be positioned anywhere along the t-slotted bar. The 8 hole corner gusset engages the 2-degree lock feature. For tightening assembly hardware see Recommended Fasteners.
______________________________________________________________________
Recommended Fasteners
MOUNT TO T-SLOT EXTRUSION
ITEM # 651129 (Qty 8) 5/16-18 x 11/16″ FBHSCS & Economy T-Nut
> Fractional Brackets Catalog PDF (689 Kb)
CAD Files:
* TSlots drawing files are available on TraceParts CAD Engine *
> Browse for files or search by part number
or Contact Us to request that files be emailed to you. Please specify desired file format.
